TYPE: Interactive Whiteboard
FOLDED: NO
RESOLUTION: 3840*2160 (4K)
FRAME:	Aluminum Alloy
WARRANTY:	1 Year
SYSTEM VERSION: Android 9.0
CAMERA PIXEL: 8M	RESPONSE TIME:	6ms
PACKING DIMENSION: 1953*1152*88
PRODUCT DIMENSION: 2120*1310*280
WRITING METHOD: Pen/finger Touch
OPERATING SYSTEM: Android+win7/10 Optional
PANEL TYPE: LED
TOUCH: 20 Point
Price: $50

PDF

Product Description:

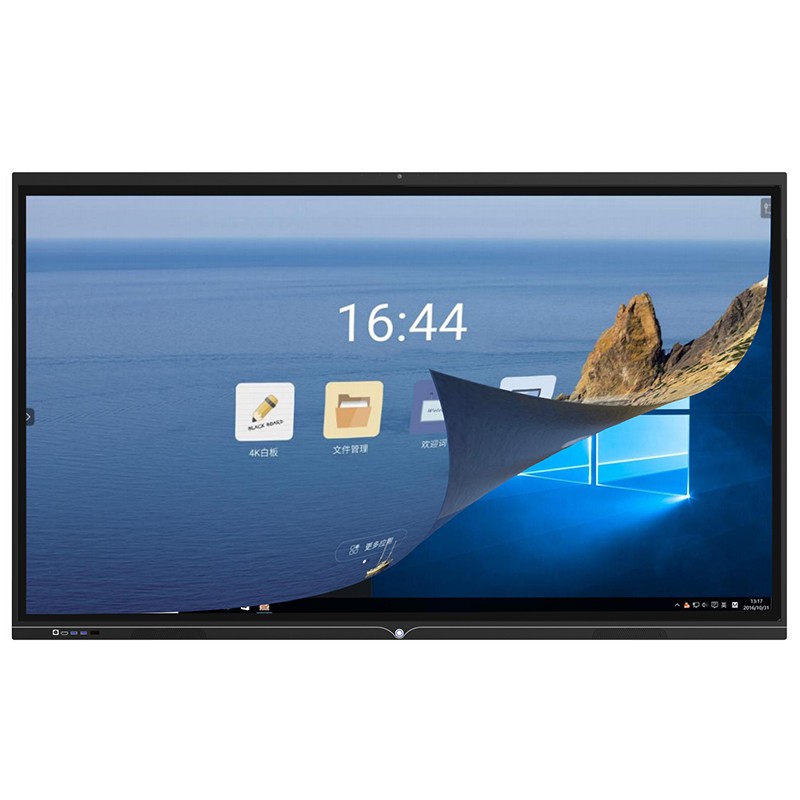

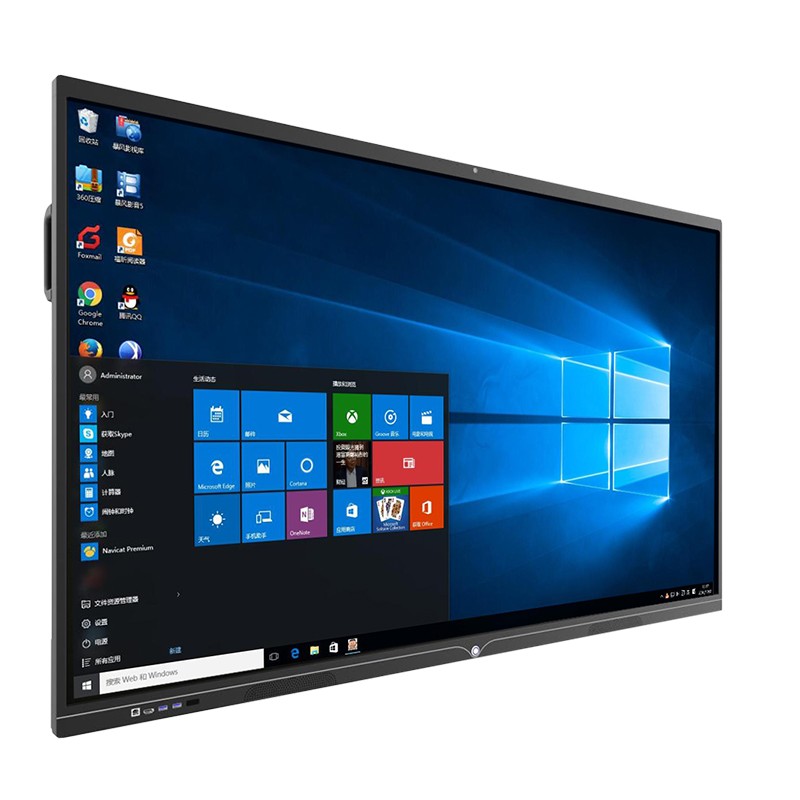

Interactive Flat Panel (Q Series 560)
Display Parameter		Diagonal Size	65inch	75inch	85inch	98inch
		Effective Display Area	1428.48(H)*803.52(V)	1650.24(H)×928.26(V)	1872(H)×1053(V)	2158.85(H)*1214.35(V)
		Display Ratio	16:9	16:9	16:9	16:9
		Brightness	320cd/㎡	350cd/㎡	350cd/㎡	320cd/㎡
		Contrast Ratio	4000:1	4000:1	4000:1	1200:1
		Backlight Type	DLED	DLED	DLED	DLED
		Viewing Angle	178°(V)/178°(H)
		Resolution	3840（H) X 2160(V)
		Audio Output Power	8Ω/10W*2	8Ω/15W*2	8Ω/15W*2	8Ω/15W*2

Back port	Input	USB 2.0	2	2	2	2
		RJ45	1	1	1	1
		HDMI 2.0	2	2	2	2
		Mic	1	1	1	1
		VGA	1	1	1	1
		VGA Audio	1	1	1	1
		RS232	1	1	1	1
	OUT	USB TOUCH	1	1	1	1
		coaxial(RCA)	1	1	1	1
		Earphone	1	1	1	1

Front port		USB2.0（Android & Windows USB3.0）	2	2	2	2
		HDMI 2.0	1	1	1	1
		USB TOUCH	1	1	1	1
		Front button	Power Button	Power Button	Power Button	Power Button

Android Specs		Android Frequency	Quad-core A55 1.5GHz	Quad-core A55 1.5GHz	Quad-core A55 1.5GHz	Quad-core A55 1.5GHz
		System Version	Android 9.0	Android 9.0	Android 9.0	Android 9.0
		Memory	DDR4 2G/3G	DDR4 2G/3G	DDR4 2G/3G	DDR4 2G/3G
		FLASH	16G/32G	16G/32G	16G/32G	16G/32G
		2.4GWIFI	2.4G	2.4G	2.4G	2.4G
		5GWIFI	Optional	Optional	Optional	Optional
		Transmission screen WIFI	5G	5G	5G	5G

Others		Power consumption of the whole machine (excluding OPS)	≤160W	≤280W	≤380W	≤400W
		Standby consumption	≤0.5W	≤0.5W	≤0.5W	≤0.5W
		Lifetime	50000 hours	50000 hours	50000 hours	50000 hours
		power supply	100-240V, 50/60Hz	100-240V, 50/60Hz	100-240V, 50/60Hz	100-240V, 50/60Hz
		Demission	1486913.293.64mm	1717.41056.3100.3mm	19621194.1100.3mm	22201324105.7mm

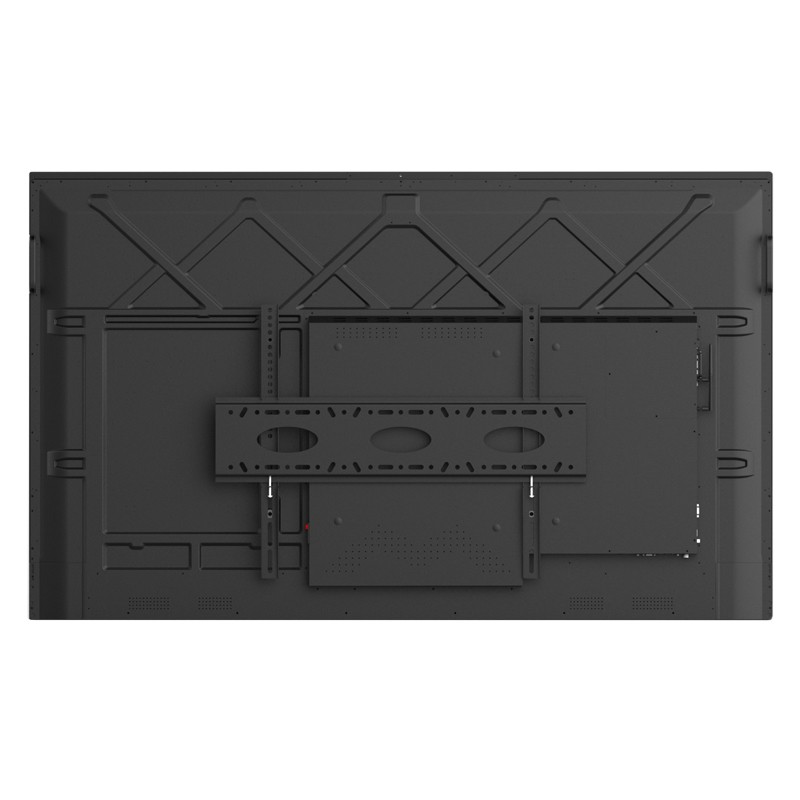

		VESA hole site	4-M8 hole site 400mm*200mm	4-M8 hole site 600mm*400mm	4-M8 hole site 600mm*400mm	4-M8 hole site 900mm*600mm
		Net Weight	38kg	59kg	76kg	87.1kg
		Gross Weight	46kg	72kg	94kg	111kg
		package size	16001030200mm	18551170200mm	20951320230mm	23581485280mm
Touch screen		Touch technology	Multiple Infrared scanning technology
		Touch type	20 point touch
		Drive Mode	HID Free drive
		Writing surface material	4mm anti glare tempered glass
		Touch Screen Sensor Mode	Finger, writing pen, hand with gloves or other non transparent touch sensitive medium
		Resolution of touch screen	32768X32768
		Communication Port	USB 2.0
		Minimum Recognition Point Size	2.5mm
		ResponseTime (SingleTouch)	≤8ms
		Touch Accuracy	±1mm
		Anti-Interference	Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux
		Calibration	Calibration free
		Touch Time	More than 60 million times in the same position
		Touch Power supply Mode	USB 5.0V power supply
Accessories		Wall-Mount	1pcs	1pcs	1pcs	1pcs
		Pen	1pcs	1pcs	1pcs	1pcs
		power cable	1pcs	1pcs	1pcs	1pcs
		Remote control	1pcs	1pcs	1pcs	1pcs
PC（Optional）		PC Option	H81/H110/H310 Mainboard	H81/H110/H310 Mainboard	H81/H110/H310 Mainboard	H81/H110/H310 Mainboard
		Input Voluge	18V DC	18V DC	18V DC	18V DC
		Rated Output Current	5A	6A	6A	6A
		Peak Output Current	6A	8A	8A	8A
		Rated Load Power	90W	108W	108W	108W
		lnterface	Canform to Intel® OPS-C JAE 80-pin connector
		National standard OPS size	L194.6W179.8H42mm（42mm or 30mm）
		European standard OPS size	L180W119H30mm
